Computer high speed double shafts rewinding machine for Masking tape, foam tape, film, turret shafts rewinder

FOB Reference Price:Get Latest Price
$15,000.00 - $25,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JC-R03-1300 JC-R03-1600
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Type:
OTHER, Special
Warranty:
1 YEAR
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
PLC
Condition:
New
Application:
Machinery & Hardware
Packaging Type:
case
Packaging Material:
plywood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
as required
Power:
15 HP
Place of Origin:
Guangdong, China
Brand Name:
JCD
Weight:
1500kg
Dimension(L*W*H):
2700*1400*1650 Mm
Certification:
CE ISO
After-sales Service Provided:
Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Low Noise Level
quality:
stable quality
performance:
dependable performance
rewinding shafts:
double shafts
Usage:
Outer
Supply Ability
Supply Ability:
25 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy plywood case
Port
shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 25 To be negotiated
Video Description
Product Description

Funcation

This machine is suitbable for rewinding the masking tape, paper tape, foam tape, cloth tape, BOPP tape, film, foil, and so on.
Type
JC-S02A-1300
JC-S02A-1600
Valid width
1300mm
1600mm
Max mother roll unwinding diameter
800mm
800mm
Max Rewinding Rewinding diameter
350mm
350mm
Inner tube diameter
3''
3''
Speed
0-180m/min adjustable
0-180m/min adjustable
Size
2700*1400*1650 Mm
3000*2500*1300mm
Weight
2500KG
2500KG

Customer Photos
Detailed Images

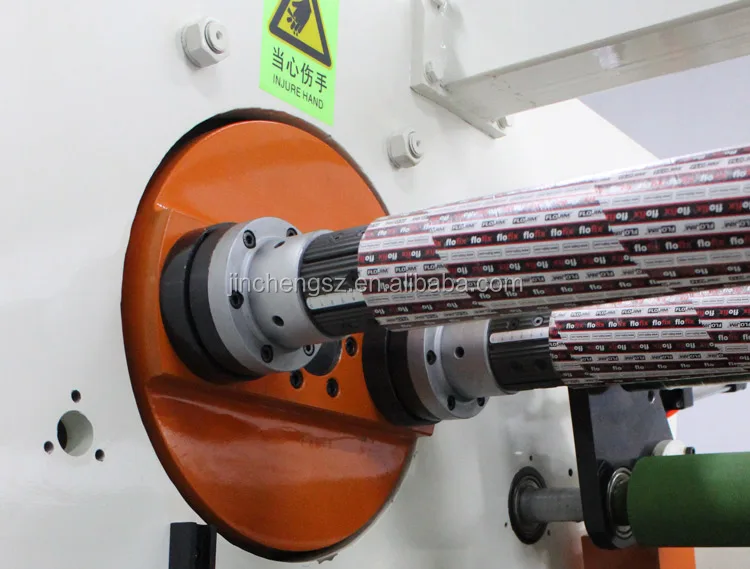

1. Double shafts turret rewinding

It would be more fast than the single shaft rewinding machine.

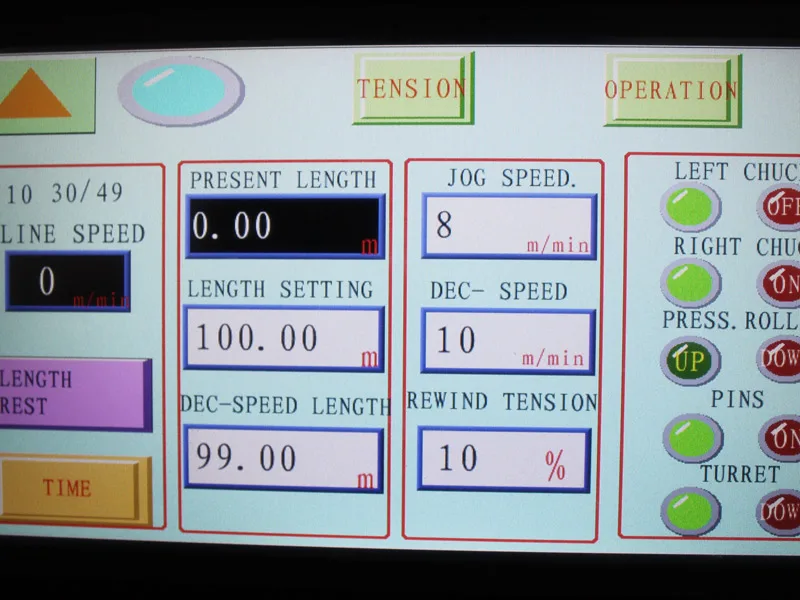

2. Large touch screen, automatic tension control system.

Don't need maunal operation, easy operation.

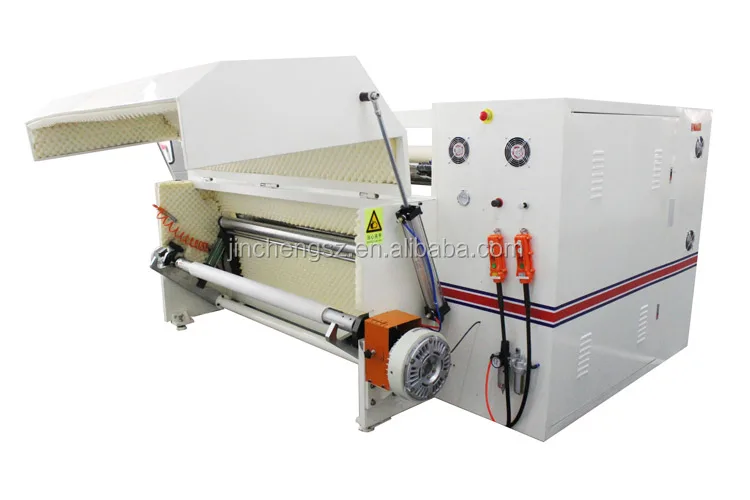

3.  Have the noise cover
Reduce the nosie and keep the health of the workers.


  • 4. Automatic hydraulic raw material loading system.

  You will be easy to put the heavy jumbo roll in the unwinding shaft. The Max weight it could charge is about 1000KG.





Features:

1. This machine within 2 steps length dounter. When reaches the required length, the shafts will do the automatically change.Youcan get accurate length rolls. And very easy to operate.

2.This machine equiped with high performance programmable controller. It is convenient and exactly to control the rewindinglength.

3.The shafts we supply as air shafts, so that the paper cores firmly on the shaft without any movement during rewinding. And it is very easy and fast to load and unload the log rolls.

4.We supply the automatic hydraulic raw material loading system. You will be easy to put the heavy jumbo roll in the unwinding shaft.

5.We supply automatic tabbing system in machine. It is controlling by cylinder.

6.This machine within automatic wrinkle removal device. So that the machine can eliminates the wrinking and bubbles of the finished products. You will get smooth and nice looking products.

Please kindly send the inquiry to us ~~
Related Products
Sales Service

Pre-service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After sales Service

* Training how to instal the machine, training how to use the machine.
*Warranty for machines is 12 months and lifetime maintence
* Engineers available to service machinery overseas.
Company Introduction

Electric team

* 2 electrician
* 8 years experience

Assemble team

* 3 production lines
* All the workers have more than 5 years experience

QC Team

* 2 QC team
* Over 10 yeas experience in the mould cutting and slitting filed.
FAQ
1. Q: Are you a factory or trading company?
A: We are a professional factory and we have years of experience of manufacture of rewinding ,cutting machines and slitting machine
2. Q: Does the machine be able to cut different size of tapes?
A: Yes absolutely, you can set any width by the PLC controler.
3. Q: Do you make machines according to specifications?
A: Yes, we do design different machines for special purpose.
4. Q: Do you have the manual book?
A:Yes, and if necessary, our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5. Q: How long does it usually take you to make the delivery?
A: As a rule ,we deliver our machine within 1 month, and of cause it will take longer for special orders, but in no case would it take longer than 3 months.
6. Q: The voltage in our country is different from yours,does the machine can be changed?
A: Yes, we can make the change for customers.
7. Q: Where is your factory locatesd in , and how can I get there?
A: Our address is 24th Pingxi south road, Pingdi street, Longgang district, Shenzhen city. 518117. China.. And we are near by Guangzhou and Hongkong .
8. Q: How about your warranty?
A: One year, wearing parts not included.
