Adhesive tape jumbo roll double sided cold laminating slitting machine with CE certification

FOB Reference Price:Get Latest Price
$10,000.00 - $69,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JC-S03D
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
JCD
Warranty:
1 YEAR, 1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Applicable Industries:
Manufacturing Plant
Showroom Location:
none
Performance:
Dependable performance
Quality:
Superior quality
Response:
To win warm praise from customers
Funtion:
PET film roll cutting machine
Tension:
Automatic
Shaft:
Pneumatic slip-shaft optional
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy plywood case
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 35 To be negotiated
Product Description

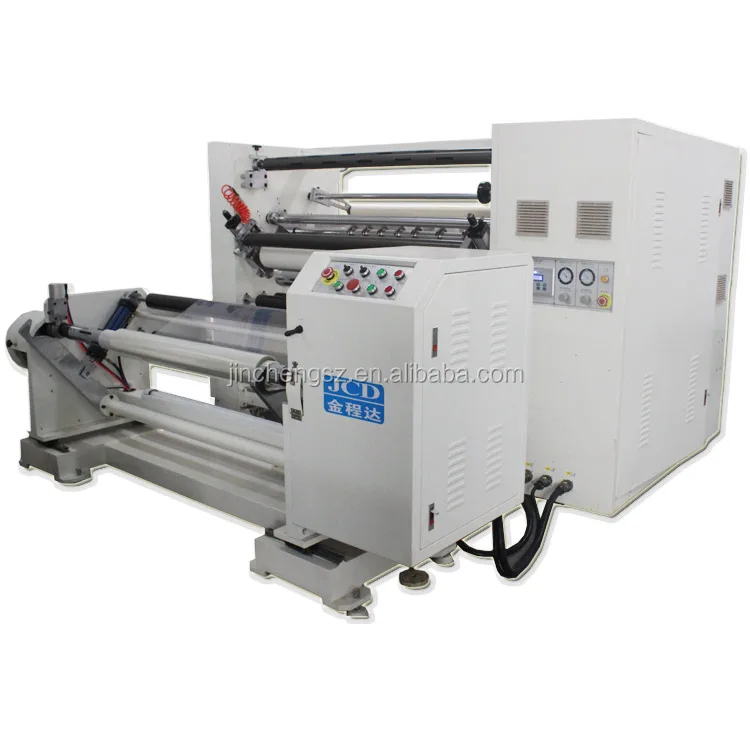

All in one type Slitting and Rewinding machine

Funcation

This machine is suitbable for laminating sltting and rewinding the Dry film/ PET Film/ Paper / PVC film/ Foam / Adhesive tape/ Copper foil/ Copper film roll and so on.

You could choose singel side lamination, double sides laminations, with or without slitting.
Cold or hot lamination both is not a problem.
Type
JC-S03-1300
JC-S03-1600
JC-S03-2550
Valid width
1300mm
1600mm
2550mm
Max mother roll unwinding diameter
800mm
800mm
800mm
Max Rewinding Rewinding diameter
500mm
500mm
500mm
Inner tube diameter
3'' or 6''
3'' or 6''
3'' or 6''
Mini slitting width
25mm
25mm
25mm
Speed
0-150m/min adjustable
0-150m/min adjustable
0-150m/ min
Size
2800*2800*2000mm
3000*2800*1900mm
3700*2800*1900mm
Weight
3000KG
3000KG
3500KG
Optional device for this machine:

* Shaftless loading device: Saving the occupied area in your factory. And if short roll easy to go through in the machine.

* Red laser aligning the cutting rewinding roll

* The plate stand for connecting the material.

Feature for this machine:
* No scratch, No snake, flate end for slitting roll

* High Precison ±0.1mm

* Full automatic tension control for unwinding

* Lutrasonic automatic deviation correction system

* To operate from touch screen, makes automatic adjustment and simple operation

* Clamoping feeding system, makes very easy loading and save labor.
Detailed Images

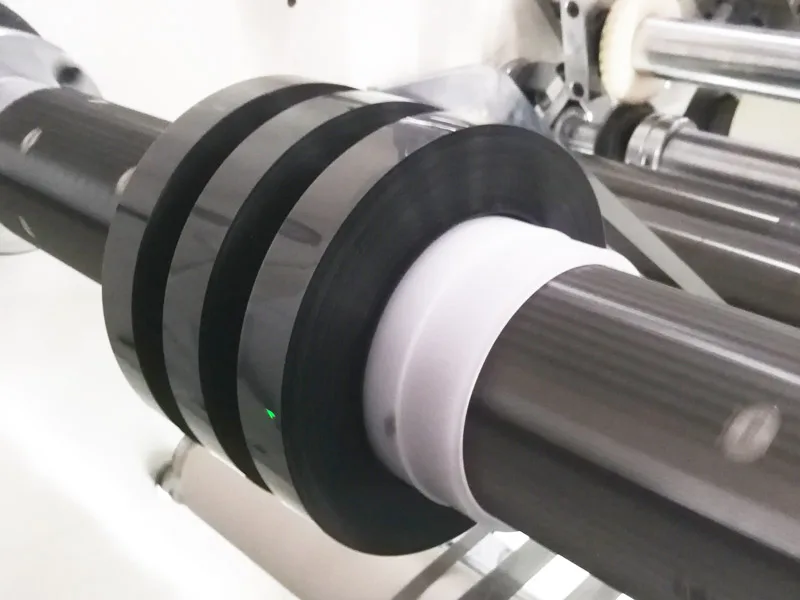

1.  cutting edge collection.

Match the main machine running speed, keep the room clean.


  • 2. Automatic ultrasonic EPC system.

  To make sure the slitting surface  perfect.










3. Adjustable width Top and down blade, Rzaor could be choose
Could ajust the balde without rewoving from the blade shaft. Save time and labor.


4. Automatic tension control system for both unwinding and rewinding. You could set the data on the touch screen directly. It is very easy to operate the machine.





Related Products
Company Introduction
Why Whoose JCD

Shenzhen JCD machinery Co.,ltd is established in 2008, specializing in producing automatic adhesive tape cutting machine,
rewinding machine, BOPP tape jumbo roll slitting rewinding machine and different kinds of optical film slitting laminating and
rewinding machine.
Welcome to contact with us and visiting our factory! Our JCD team will try our best to provide the perfect service to you!

Electric team

* 2 electrician
* 8 years experience

Assemble team

* 3 production lines
* All the workers have more than 5 years experience

QC Team

* 2 QC team
* Over 10 yeas experience in the mould cutting and slitting filed.
Sales Service

Pre-service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After sales Service

* Training how to instal the machine, training how to use the machine.
*Warranty for machines is 12 months and lifetime maintence
* Engineers available to service machinery overseas.
Packing&Shipping
Package: Stand package: Used the standard woodern package. Delivery: By LCL or FCL.
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are a professional factory and we have years of experience of manufacture of rewinding ,cutting machines and slitting machine
2. Q: Does the machine be able to cut different size of tapes?
A: Yes absolutely, you can set any width by the PLC controler.
3. Q: Do you make machines according to specifications?
A: Yes, we do design different machines for special purpose.
4. Q: Do you have the manual book?
A:Yes, and if necessary, our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5. Q: How long does it usually take you to make the delivery?
A: As a rule ,we deliver our machine within 1 month, and of cause it will take longer for special orders, but in no case would it take longer than 3 months.
6. Q: The voltage in our country is different from yours,does the machine can be changed?
A: Yes, we can make the change for customers.
7. Q: Where is your factory locatesd in , and how can I get there?
A: Our address is 24th Pingxi south road, Pingdi street, Longgang district, Shenzhen city. 518117. China.. And we are near by Guangzhou and Hongkong .
8. Q: How about your warranty?
A: One year, wearing parts not included.
