China Auto Silicone Adhesive protective film jumbo roll lamination and rewinding machine, cold or hot laminating machine

FOB Reference Price:Get Latest Price
$14,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
10HP
Model Number:
JC-S04B
Lead Time:
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Packaging Line
Applicable Industries:
Manufacturing Plant
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Showroom Location:
none
Condition:
New
Application:
commodity, Medical, Textiles
Packaging Type:
cartons, Film
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V or as customzied
Place of Origin:
Guangdong, China
Brand Name:
JCD
Dimension(L*W*H):
2500*2500*1500mm
Weight:
2500KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Key Selling Points:
High-accuracy
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
engine
Speed:
20-80M/min
Tension control:
Automatic tension control
Usage:
roll to roll lamination
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy plywood case
Port
Shenzhen
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 30 To be negotiated
Video Description
Product Description

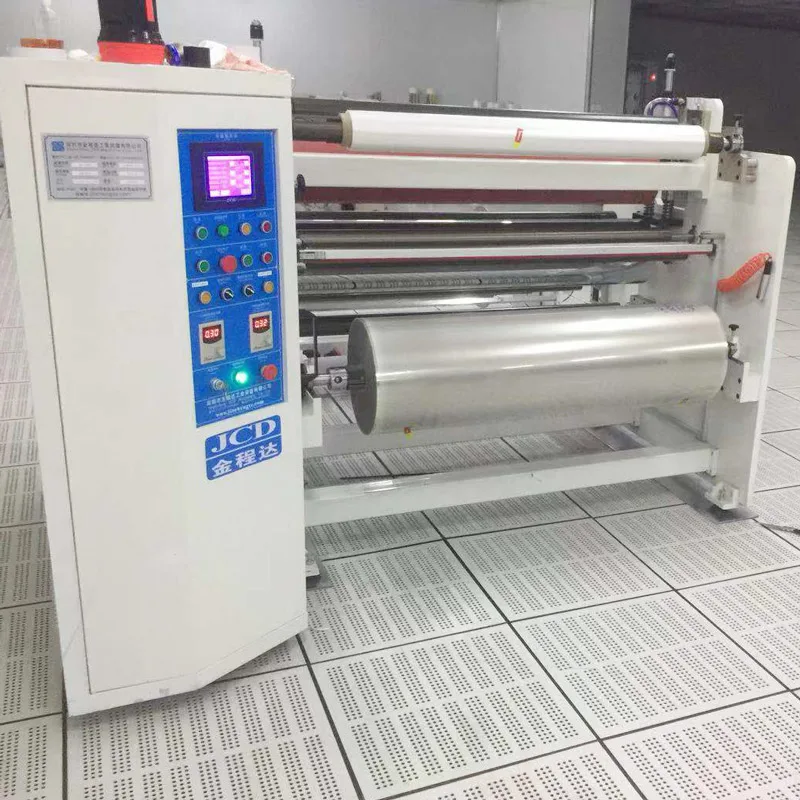

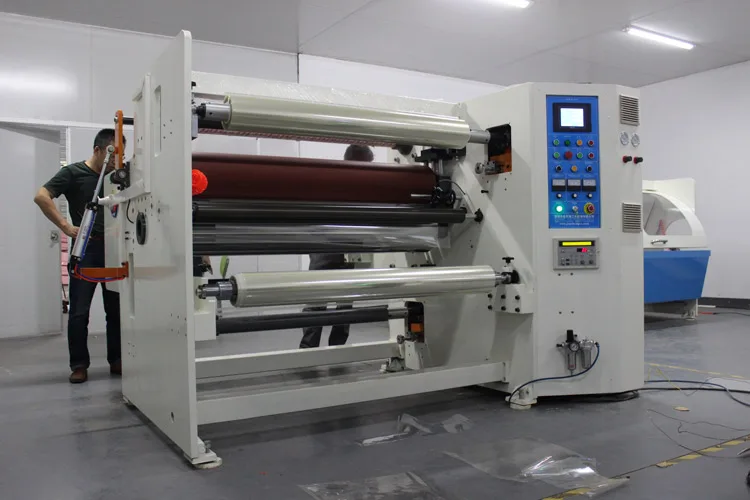

Roll to roll laminating machine

Funcation

It is suit one side or double sides laminating.It also could peel the protect film and laminating the new film on the surface.
Suitable material: BOPP film, paper, foam, fabric, sticker and so on.
Type
JC-S04B-1300
JC-S04B-1600
Valid width
1300mm
1300mm
Max mother roll unwinding diameter
700mm
700mm
MaxTop and down lamination roll diameter
350mm
350mm
Max Rewinding Rewinding diameter
700mm
700mm
Inner tube diameter
3'' or 6''
3'' or 6''
Speed
0-50m/min adjustable
0-50m/min adjustable
Size
2500*2500*1300mm
2800*25002*1300mm
Weight
2500KG
2500KG
Detailed Images



Big diameter lamination roll
Make the finial roll more flat with no bubble

Two-step length setting ensure the precision of the rewinding length. It could automatic stop by the set length


  • All-in- one or separate body could choose

Need small room.










Roller length accounter
High precision for the length


  • Rubber roller

Using pneumatic rubber roller, to ensure high quality of rewinding material.





Optional device for rewinding machine:
1
Separate unloading part .
2
Auto loading device by hydraulic lifter.
3
Noise reduce system: Add the cover in the unwinding part. That will reduce the noise by 90%, makes the working with low noise and
environmental.
4
Wasting film removing systm
5
Heating device.
6
Cutting function: Able to be equipped with air score knife and trim removable unit for trimming at both sides and wide size
slitting.
7
OEM: OEM service with your own logo or products are available.
Related Products
Company Introduction
Why Whoose JCD

Shenzhen JCD machinery Co.,ltd is established in 2008, specializing in producing automatic adhesive tape cutting machine,
rewinding machine, BOPP tape jumbo roll slitting rewinding machine and different kinds of optical film slitting laminating and
rewinding machine.
Welcome to contact with us and visiting our factory! Our JCD team will try our best to provide the perfect service to you!

Electric team

* 2 electrician
* 8 years experience

Assemble team

* 3 production lines
* All the workers have more than 5 years experience

QC Team

* 2 QC team
* Over 10 yeas experience in the mould cutting and slitting filed.
Sales Service

Pre-service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After sales Service

* Training how to instal the machine, training how to use the machine.
*Warranty for machines is 12 months and lifetime maintence
* Engineers available to service machinery overseas.
Packing&Shipping
Package: Stand package: Used the standard woodern package. Delivery: By LCL or FCL.
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are a professional factory and we have years of experience of manufacture of rewinding ,cutting machines and slitting machine
2. Q: Does the machine be able to cut different size of tapes?
A: Yes absolutely, you can set any width by the PLC controler.
3. Q: Do you make machines according to specifications?
A: Yes, we do design different machines for special purpose.
4. Q: Do you have the manual book?
A:Yes, and if necessary, our engineers are available to service overseas .And our machines are highly automatical and easy to operate.
5. Q: How long does it usually take you to make the delivery?
A: As a rule ,we deliver our machine within 1 month, and of cause it will take longer for special orders, but in no case would it take longer than 3 months.
6. Q: The voltage in our country is different from yours,does the machine can be changed?
A: Yes, we can make the change for customers.
7. Q: Where is your factory locatesd in , and how can I get there?
A: Our address is 24th Pingxi south road, Pingdi street, Longgang district, Shenzhen city. 518117. China.. And we are near by Guangzhou and Hongkong .
8. Q: How about your warranty?
A: One year, wearing parts not included.
