3 layers laminating machine for double sides self adhesive PE foam adhesive tape

FOB Reference Price:Get Latest Price
$20,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
JC-S03A
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
APPAREL, BEVERAGE, CHEMICAL, commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type:
case, Film
Packaging Material:
wood, Plywood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
3 phase 380V/50HZ
Power:
15 HP
Place of Origin:
Guangdong, China
Brand Name:
JCD
Weight:
2500KG
Dimension(L*W*H):
Machine Model
Certification:
CE Certificate
Name:
3 layers laminating machine for double sides self adhesive tape
Keywords:
tape laminating machine
Inverter:
Japan famous brand
Tension:
Automatic tension controller
Warranty:
1 Year
Shaft:
pneumatic Air shaft / slip-shaft for optional
Material:
Stainless Steel
Controlling system:
By electrical
EPC Device:
automatic
Trimming device:
optional
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Seaworthy plywood case.
No need do fumigation.
Port
Shenzhen
Function

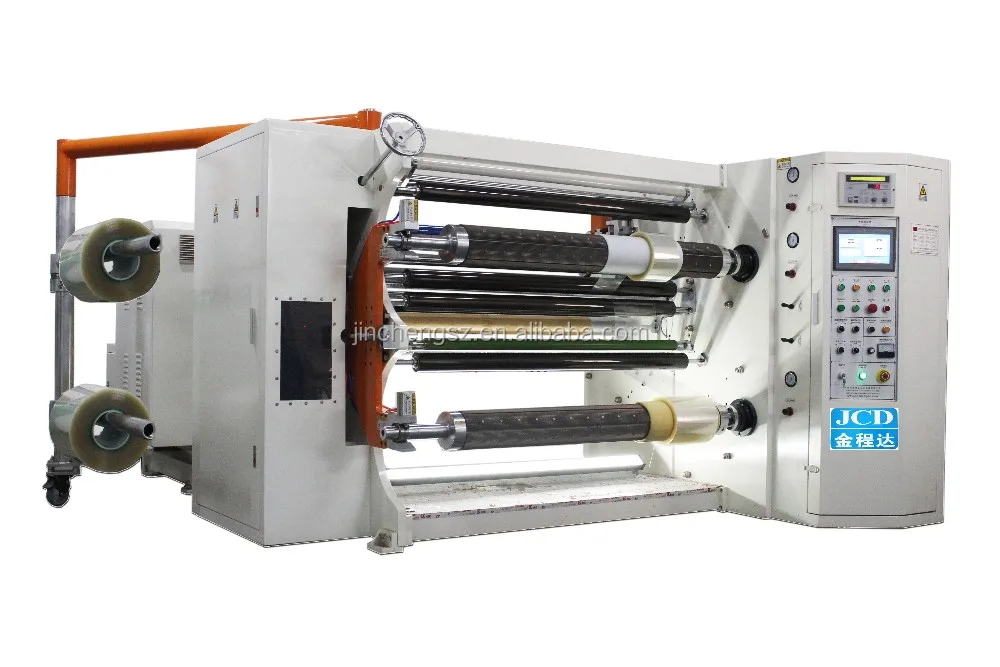

3 layers double sides self adhesive PE foam tape laminating machine


This machine is suitable for laminating and slitting kinds of adhesive tapes, protective films, papers etc.



Features
1
Jumbo roll loading by hydraulic lifter & pneumatic auto loading.
Which can save much labor force and shorten time.
2
EPC&PLC makes material’s slitting edge smooth and accurate.
So that the machine is working more stable, security and efficient.
3
Double rewinder seperately controlled by 2 pcs motors and automatic tension controller.
To make the rewinding more steady and accurately.
4
Automatic tension controlling for both unwinding and rewinding.  Ensure the laminating flat and rewinding smooth.
5
Equipped with automatic rewind material’s  discharging device.
To make easier remove the heavy finished rolls.
6
Whole  machine is controlled by PLC, man-machine interface touch screen operation.
7
Movable waste rewinding device. To provides the waste film to rewind gently on the ground and it minimized dust occur for the Clean room condition.
8
High-end surface treatment roller gives no scratch during slitting and rewinding on the Optical or coated films.



Technical parameters
Material width
1600mm ( or as your request)
Max.unwind diameter
800mm
Max.rewind diameter
 400mm
Slitting knife
Straight knife/ circular knife for optional
I.D of paper core
 3''/ 6''
Rewind speed
0-100 M/min
Voltage
 3 phase 380V/ 50HZ
Power
15 HP
Air pressure
6kg/cm2
Optional device


Hydraulic Shaft-lessJumbo roll loading device.

Hydraulic air shaft or shaft-less lifter type for optional.





Differential slip shaft for rewinding.


Air shaft and differentical slip shaft for optional as the rewinding shaft.
The differentical slip shaft can ensure the volume do not shift and loose while counter rotating.





Automatic tension controller.


The automatic tension controller for both unwind and rewind unit.

Make sure the rewinding roll more precision and good looking.


Seperately electrical box.

Movable electrical box. So that you can operate the machine in front or in behind.

Trimming device

Movable waste rewind provides the waste film to rewind gently on the ground and it minimized dust occur for the Clean room condition.

Packing & Delivery
Packaging
Size
3250 (L) * 2000 (W) * 2100 (D)mm
Weight
2.5 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3250 (L) * 2000 (W) * 2100 (D)mm
Weight
2.5 T



Packaging Details
 The normal package is seaworthy plywood case.
 No need do fumigation to abroad.

We can also make vacuum packing for machine according to customers special request.
